SG710

GOBLIN NITRO SPORT

SKU: SG710 bar code: 8935254811961
Availability: Low stock
Purchase and earn 765 points
€765.00
GOBLIN NITRO SPORT
Risorsa 1
Blade Size 690
icona-peso
Weight (no battery/fuel) 4200g
battery-icon_1
Power supply Nitro

The Nitro Sport has been developed to provide the best performance for the best price.

Delivering maximum FUN for your money with lower than every canopy, boom and side frame cost, providing the best solution while delivering consistent performance in line with the Nitro Family.

The Nitro Sport is all about fun and performance on a budget.

Stylish fiberglass canopy weighing in at 230gm.  RRP $79

New carbon tail boom manufactured using an innovative lower cost process pushing the RRP down to $69

G10 mainframe delivers performance on a budget. Compatible with the standard carbon frame to allow simple upgrading.

• No blades included, giving you more freedom to choose your style and control your budge

MAIN FEATURE

The center of gravity is one of the most essential items to a nitro model. We made it a priority to have a high and neutral center of gravity. The fuel tank is located in the center of the main shaft so that as the fuel level changes, the center of gravity remains the same.

The engine and all of its components are in one modular design. With 4 bolts, you can easily remove and install the entire engine assembly from the model.

Starting assembly, clutch stack, fan and motor pulley are installed on one shaft that is directly mounted onto the engine itself. This assures that everything with the engine is perfectly aligned for smooth transmission.

FEATURES

• Goblin Black Nitro body

• Engine unit

• RX battery support

• RPM sensor rooms

• Main gear CNC H0405 (aluminum/delrin)

• Black matte components

• Swashplate with high quality spherical bearing

• Serial Number engraved on the main plate

• Different Ratio available [ 8.24 ( 28T ), 7.92( 27T ) or 8.23 (26T )]

Kit upgrades
Total price
GOBLIN NITRO SPORT €765.00
Total €765.00

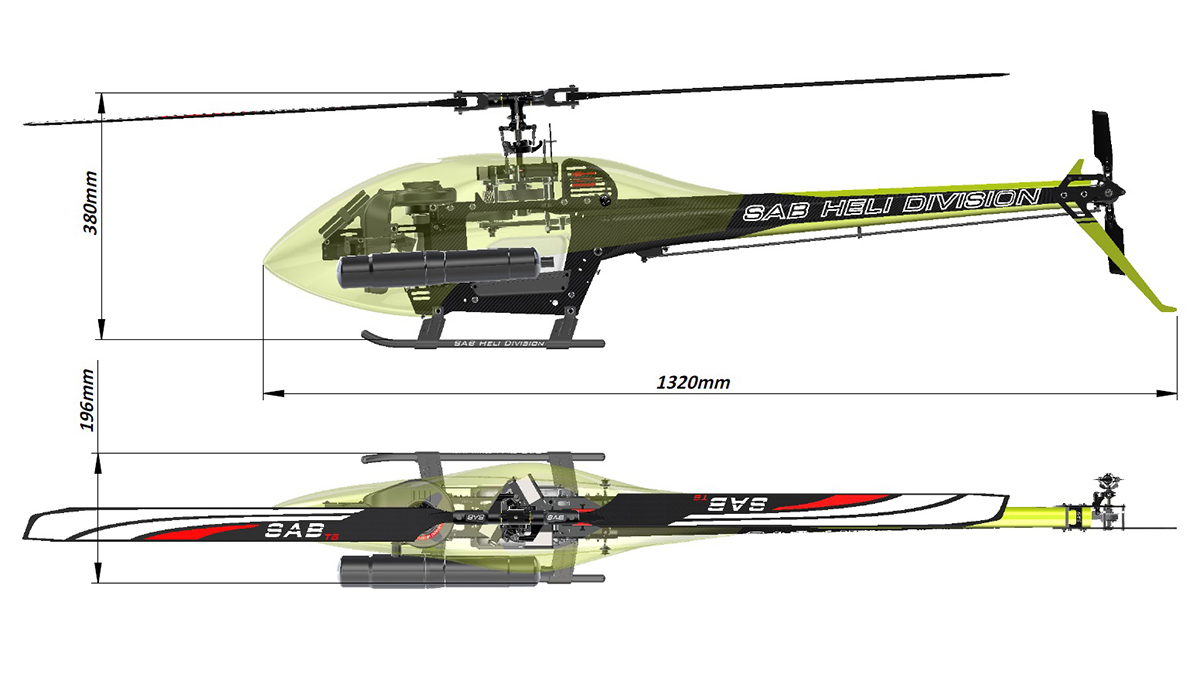

Helicopter Main Data

nitro-data
Configuration 700 Size
Available P/N SG710-SG711-SG713
Main rotor diameter 1548mm
Main blade length 690mm
Tail rotor diameter 305mm
Tail blade length 115mm
Main shaft diameter 12mm
Tail shaft diameter 6mm
Weight 4200g no Fuel

Helicopters Secondary Data

Cyclic Servos Standard size 40mm
Tail Servo Standard size 40mm
Maximum motor size 90-120 glow engine
Battery capacity 2S 1600/3000 mAh
Available ratios From 7.64 to 8.23

Spare Parts

Uniball M3x4 D5 H18
H0063-S Uniball M3x4 D5 H18
€5.00
Nylon Nut M2.5
HC200-S Nylon Nut M2.5
€5.00
Nylon Nut M3
HC206-S Nylon Nut M3
€4.00
JR servo arm
HA051 JR servo arm
€17.00
SAB Fuel Nipple
H0708-S SAB Fuel Nipple
€9.00
Aluminum Insert M3
H0716-S Aluminum Insert M3
€8.00
FBL support Low
H0727-S FBL support Low
€10.00
Canopy Nitro Sport
H0957-S Canopy Nitro Sport
€79.00
Frame Nitro Sport
H0960-S Frame Nitro Sport
€19.50
Zip Tie 2.5 x 200mm
HA058-S Zip Tie 2.5 x 200mm
€6.00

Upgrades

SAB Tool Kit
HM054 SAB Tool Kit
€49.00
SAB Tool Case
HM053 SAB Tool Case
€19.00
SAB Crank Shaft Claim
H0726-S SAB Crank Shaft Claim
€14.00
One Way Starter Rod
HA054-S One Way Starter Rod
€26.00
