SG746

GOBLIN RAW 700 NITRO

SKU: SG746
Availability: Out of stock
Purchase and earn 969 points
€969.00

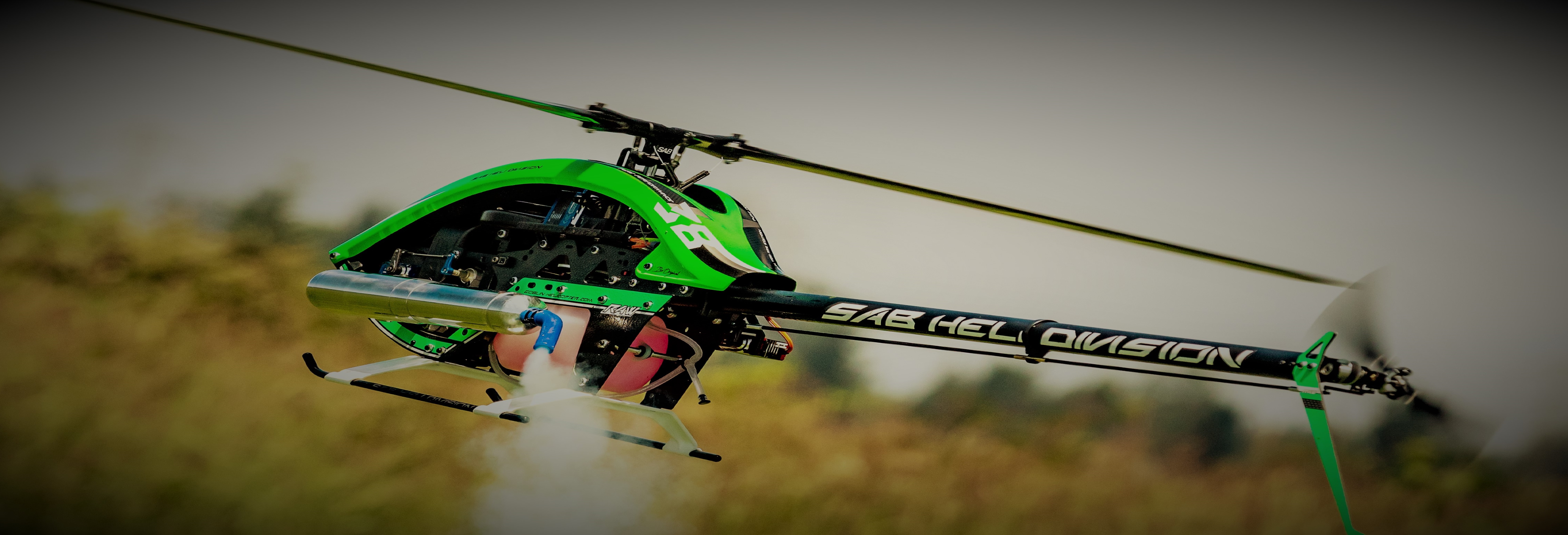

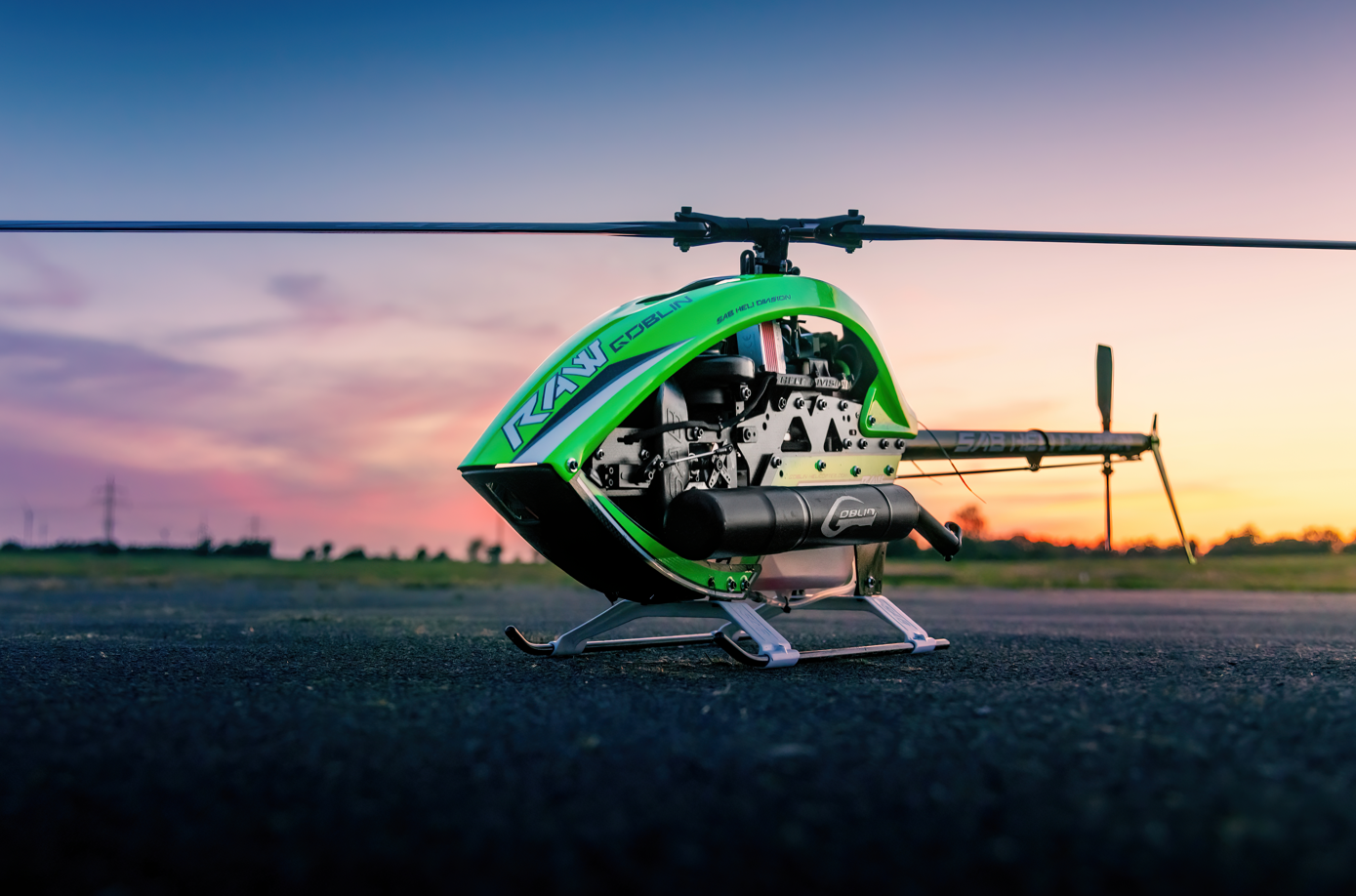

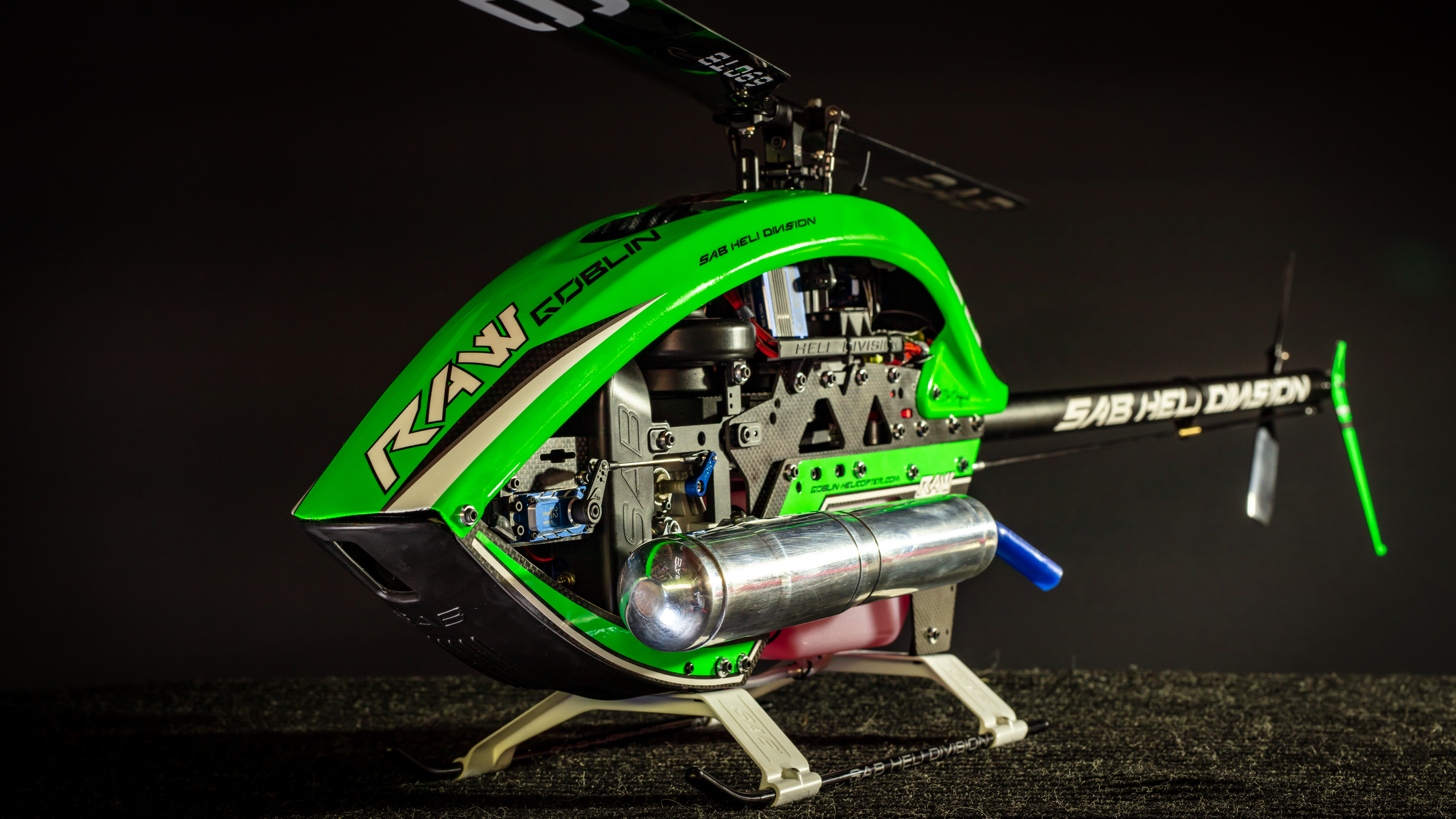

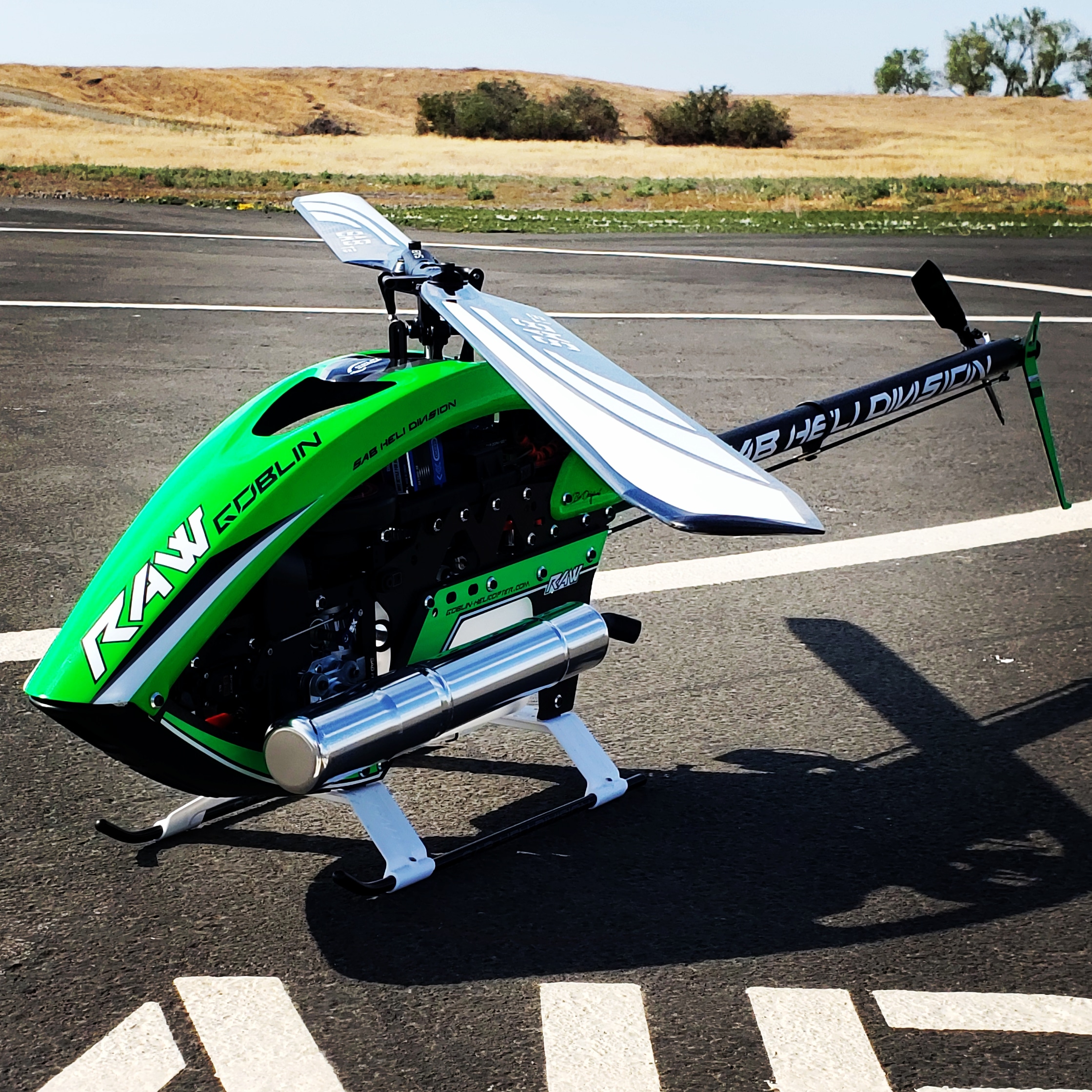

GOBLIN RAW 700 NITRO
Risorsa 1
Blade Size 690
battery-icon_1
Power supply 2S 11800-2500
icona-peso
Weight (no battery/fuel) 4040gr

More info in our dedicated page

• RTF Approx. Weight: 4040 g (RTF no fuel).

• Main blade length: 650mm to 720mm ( 690mm included ).

• Tail blade length: 105 to 115 mm ( 105mm included ).

• Main rotor diameter: 1558 mm (with 690 mm blades).

• Tail rotor diameter: 284 mm (with 105 mm tail blades).

• Engine: .90 to .105 Nitro Heli Engine.

• Cyclic Servos: Standard size 40mm.

• Tail Servo: Standard size 40mm.

• Throttle Servo: Mini size 35 mm or Standard size 40mm.

• Main Rotor Ratio: 7.7- 8.3 :1 (27T included: 8:1).

• Tail Rotor Ratio : 5.1 - 4.9:1 ( 22T included: 5.1:1 ).

• Tank Capacity: 650ml.

• RX Battery Size: 2S-1800 / 2500 mAh.

Kit upgrades
Total price
GOBLIN RAW 700 NITRO €969.00
Total €969.00
Out of stock

Helicopter Main Data

SG7466
Configuration 700
Available P/N SG746
Main rotor diameter 1558mm
Main blade length 690mm
Tail rotor diameter 284mm
Tail blade length 105mm
Main shaft diameter 10mm
Tail shaft diameter 6mm
Weight 4040gr without fuel

Helicopters Secondary Data

Cyclic Servos Standard size 40mm
Tail Servo Standard size 40mm
Typical speed controller
Maximum motor size
Motor KV
Battery compartment
Battery capacity 2S 1800-2500mAh
Available ratios 7.7 - 8.3

Spare Parts

Thread Rod M2,5X18
HC140-S Thread Rod M2,5X18
€6.00
Nylon Nut M3
HC206-S Nylon Nut M3
€5.00
JR servo arm
HA051-S JR servo arm
€19.00
SAB Fuel Nipple
H0708-S SAB Fuel Nipple
€10.00
Strap 205x16
HA044-S Strap 205x16
€6.00
Reference Pin
H1048-S Reference Pin
€5.00
Wire Cover
H1107-S Wire Cover
€9.00
Grease LDS
HA075-S Grease LDS
€11.00
Grease NBU
HA076-S Grease NBU
€11.00
Antenna Support
H1134-S Antenna Support
€7.00
MAIN BLADES 690TBS
690TBS MAIN BLADES 690TBS
€126.00
TAIL BLADES 105TBS
105TBS TAIL BLADES 105TBS
€32.00
ALUMINUM SWASHPLATE
H1204-S ALUMINUM SWASHPLATE
€54.00
STEEL MAIN GEAR
H1208-S STEEL MAIN GEAR
€39.00
ORING DAMPERNER
H1216-S ORING DAMPERNER
€20.90
ALUMINUM LANDING SKID
H1242-S ALUMINUM LANDING SKID
€19.00
Aluminum Block Nut M2
H1386-S Aluminum Block Nut M2
€18.00
CF Lower Side Frame
H1344-S CF Lower Side Frame
€25.00
Battery Hatch
H1347-S Battery Hatch
€11.00
Canopy Spacer
H1348-S Canopy Spacer
€10.00
Belt Tensioner
H1278-S Belt Tensioner
€18.00
Tensioner Idle
H1066-S Tensioner Idle
€15.40
RAW NITRO MANUAL_release 1.0.L

RAW NITRO MANUAL_release 1.0.L
