SG420

SAB GOBLIN 420 YELLOW/BLACK(with 420mm ThunderBolt Main Blades)

SKU: SG420 bar code: 8935254809432
Availability: Low stock
Purchase and earn 419 points
€419.00
Discontinued
SAB GOBLIN 420 YELLOW/BLACK(with 420mm ThunderBolt Main Blades)
Risorsa 1
Blade Size 420
icona-peso
Weight (no battery/fuel) 1200g
battery-icon_1
Power supply 6s 1800/2600mAh

The Goblin 420 provides incredible performance, reliability and simplicity with the unique and innovative Goblin look you are accustomed to!

Kit includes:

• 20T motor pulley (other sizes available)

• 20T tail pulley

• 420 mm Thunder Sport main blades

• 70 mm Carbon tail blades

• 2 Battery trays with straps and double tape

The following motor pulleys are available:

• H0501-19-S - 19T Pinion = ratio 6.3:1

• H0501-20-S - 20T Pinion = ratio 6:1

• H0501-21-S - 21T Pinion = ratio 5.7:1

• H0501-22-S - 22T Pinion = ratio 5.5:1

• H0501-23-S - 23T Pinion = ratio 5.2:1

• H0501-24-S - 24T Pinion = ratio 5:1

All these motor pulleys are for a 5 mm motor shaft.

MAIN FEATURES

• Amazing Thunder Look

• 420mm ThunderBold blades include in the kit

• Thunder Sport main blades

• Belt tension for smoother tail drive

Tail ratio optimized for 420mm blades set up

• Carbon Fiber landing gear

Kit upgrades
Total price
SAB GOBLIN 420 YELLOW/BLACK(with 420mm ThunderBolt Main Blades) €419.00
Total €419.00
Discontinued

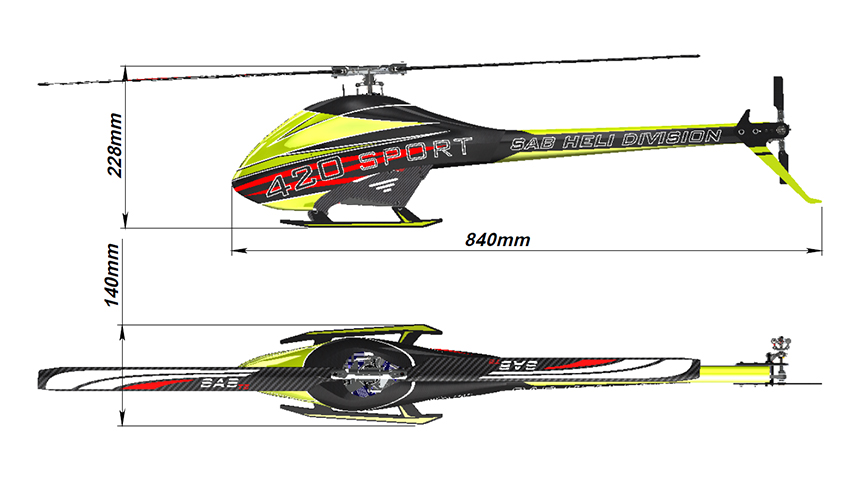

Helicopter Main Data

420-data
Configuration 6S Setup
Available P/N SG420
Main rotor diameter 936mm
Main blade length 420mm
Tail rotor diameter 196mm
Tail blade length 70mm
Main shaft diameter 8mm
Tail shaft diameter 5mm
Weight 1200g (ex. Battery)

Helicopters Secondary Data

Cyclic Servos Micro size 23 mm
Tail Servo Mini size 36 mm
Typical speed controller 60 - 100 A
Maximum motor size 41 mm diameter x 41 mm height
Motor KV 850-1000KV
Battery compartment 44x44x130 mm
Battery capacity 6s 1800/2600mAh
Available ratios From 5.0 to 6.3
