SG630

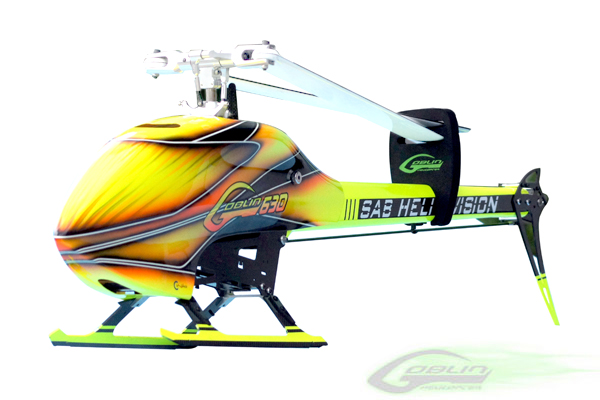

SAB GOBLIN 630 YELLOW/RED (With main and tail blades)

SKU: SG630
Availability: Out of stock
Purchase and earn 719 points
€719.00
Discontinued

General Specifications

Electronic Specifications

  • Main rotor diameter: 1428mm (with 630mm blades)

  • Main blade length: 600 to 630mm

  • Tail rotor diameter: 278mm

  • Tail blade length: 105mm

  • Main shaft diameter 12mm

  • Tail shaft diameter: 6mm

  • Spindle diameter: 10mm

  • Pinion 20T

  • Motor pulley 20T

  • Main gear 68T

  • Tail pulley 27T

  • main pulley 37T

  • Weight including electronics 3220g (excluding batteries).

  • Maximum motor size: 64mm diameter, maximum height 64mm

  • Battery compartment: 60x58x350mm (adaptable to 64x58x350mm)











The following motor pulleys are available:

  • 18T Pinion = ratio 11.3:1

  • 19T Pinion = ratio 10.7:1

  • 20T Pinion = ratio 10.2:1

  • 21T Pinion = ratio 9.7:1 (stock ratio)

  • 22T Pinion = ratio 9.3:1

  • 23T Pinion = ratio 8.9:1

  • 24T Pinion = ratio 8.5:1

  • 26T Pinion = ratio 7.8:1

  • With Scorpion motor HKIII 4035-560,

  • normal= 20T

  • Hard 3D= 21T



Disclaimer: SAB Heli Division does not endorse any of the electronic components listed. These are only suggestions based on our own testing. Please make sure to do your own research to ensure compatibility between these components, specially between motors and ESCs.
