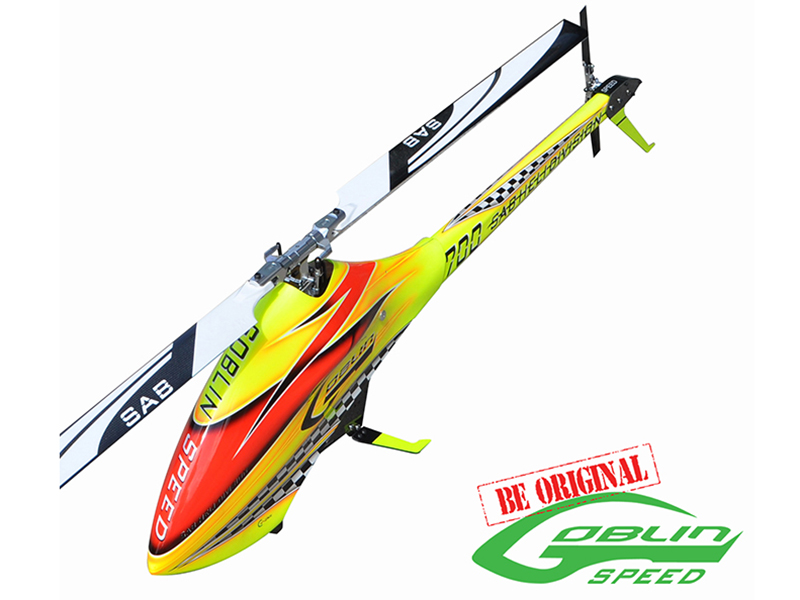

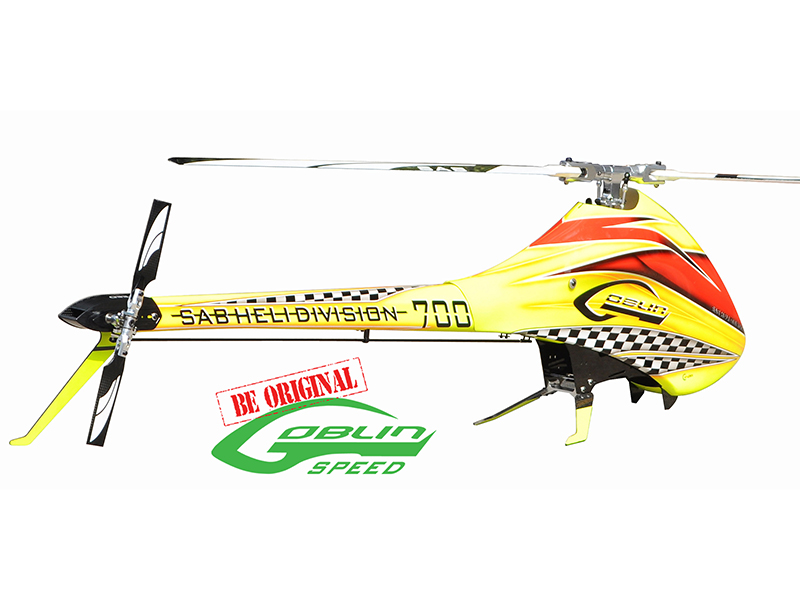

SAB GOBLIN 700 SPEED YELLOW/RED (With main and tail blades)

General Specifications

Electronic Specifications

• Main rotor diameter: 1626 mm

• Main blades: 720 mm

• Main blades optimized to be extremely stable at high speeds

• Tail rotor diameter: 283 mm

• Tail blades: 104 mm rounded trip optimized for high speed

• Weight including all electronics excluding batteries: 4010 g

• Ratio 11.9 / 8.5  :1  (22T pulley included in kit for 9.8:1 ratio)

• Cyclic Servos: Standard size 40 mm

• Tail Servo: Standard size 40 mm

• Typical Speed controller: Kontronik Kosmik 160/200, YGE 160-320

• Typical Motor: Pyro 800-850, Scorpion 4535/40 - Max. 65 mm diameter x 80 mm height
• Battery compartment: 75 x 58 x 350mm

 Kit Includes:

• 22T motor pulley (other pulley sizes available)
• 2 battery tray
• 720 mm main Speed blades
• 104 mm rounded tip tail blades

The following motor pulleys are available:

18T Pulley (P/N H0175-18-S) Ratio 11.9:1

19T Pulley (P/N H0175-19-S) Ratio 11.3:1

20T Pulley (P/N H0175-20-S) Ratio 10.7:1

21T Pulley (P/N H0175-21-S) Ratio 10.2:1 22T Pulley (P/N H0175-22-S) Ratio 9.8:1

23T Pulley (P/N H0175-23-S) Ratio 9.3:1

24T Pulley (P/N H0175-24-S) Ratio 8.9:1

25T Pulley (P/N H0175-26-S) Ratio 8.6:1

• New head with 2-piece blade grip preserves grips in the event of a crash. New, stronger main linkage.

• Wrap around canopy design to minimize drag. • Landing gear with minimum frontal section for increased speed.

• Optimized speed controller mounting position for minimum wire length.

• New dampened tail rotor system, slop free, very durable.

• Metal main gear, 19 mm GT3 motor belts, double one-way bearing.

• Motor mount with cooling fin (Part # H0316) standard with kit. • Aluminum tail case for increased stiffness. • New dampened tail rotor system, slop free, very durable.
