SG581

SAB Goblin Kraken 580 Nitro

SKU: SG581
Availability: Low stock
Purchase and earn 819 points
€819.00

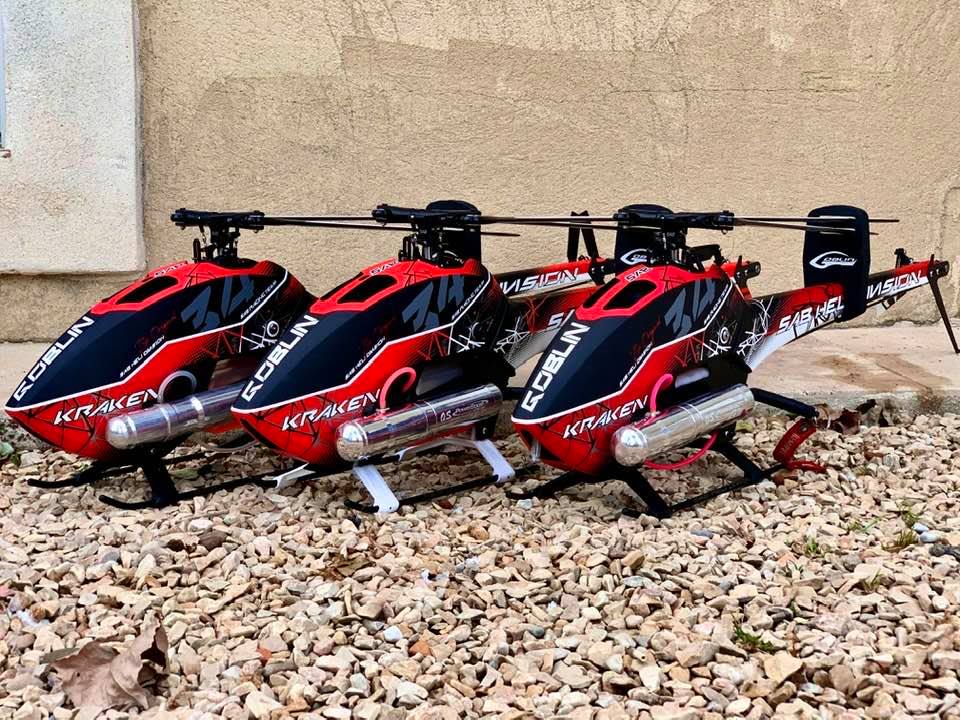

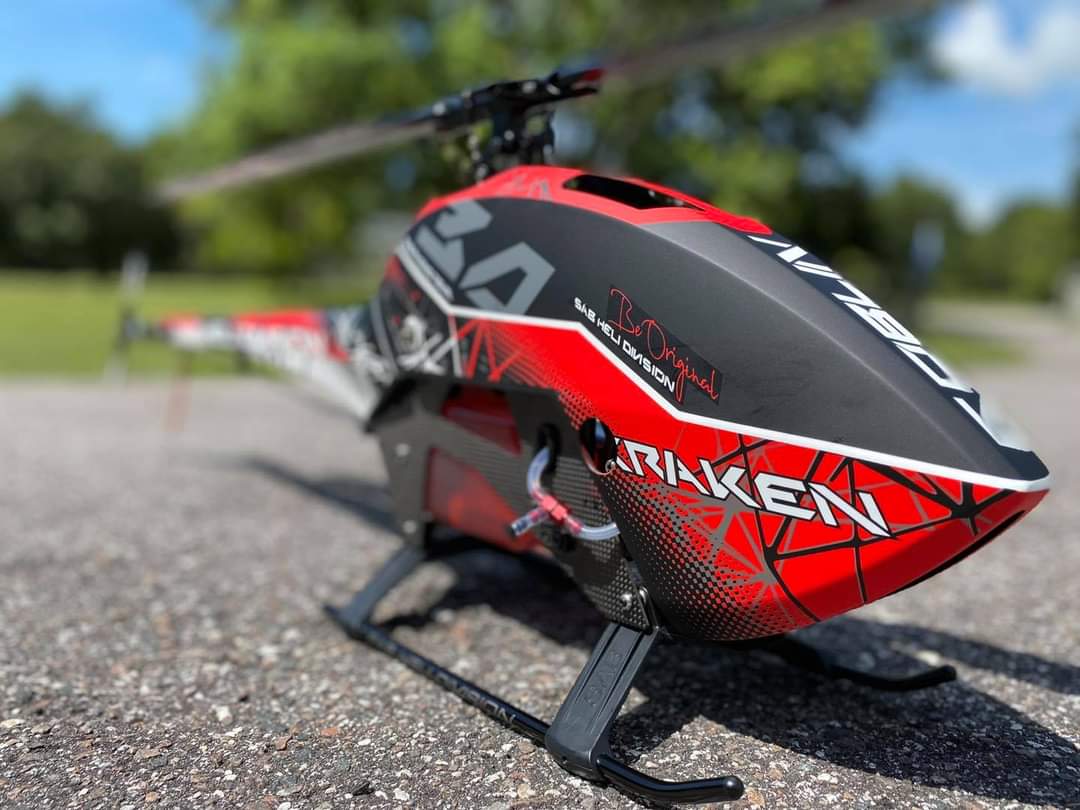

SAB Goblin Kraken 580 Nitro

Technical Specifications:

  • RTF Approx. Weight: 3090 grams (no fuel)

  • Main blade length: 550mm to 600mm (570 mm included)

  • Tail blade length: 95 to 105 mm (95mm included)

  • Cyclic Servos: Mini size 35 mm (Standard size 40mm option)

  • Tail Servo: Standard size 40mm

  • Main Rotor Ratio: 7.98 to 7.4 :1 (26T included: 7.98:1)

  • Tail Rotor Ratio: 5.3-4.9:1 (23T included: 4.9:1)

  • Engine: .50 to .60 Nitro Heli Engine

  • Tank size: 440ml

  • RX battery size: 2S -1800 mAh

Total price
SAB Goblin Kraken 580 Nitro €819.00
Total €819.00

Helicopter Main Data

Configuration 580/600
Available P/N SG581
Main rotor diameter 1270mm with 570mm Main Blades
Main blade length 570mm to 600mm
Tail rotor diameter 260mm with 95mm Tail Blades
Tail blade length 95mm to 105mm
Main shaft diameter 10mm
Tail shaft diameter 5mm
Weight 3090 grams (no fuel)

Helicopters Secondary Data

Cyclic Servos Mini Size 36mm
Tail Servo Standard size 40mm
Maximum motor size .50 to .60 Nitro Heli Engine
Battery capacity 2S 1800
Available ratios 7.98 to 7.4 :1

Spare Parts

Uniball M3x4 D5 H18
H0063-S Uniball M3x4 D5 H18
€5.00
JR servo arm
HA051 JR servo arm
€17.00
MAIN BLADES 570TBS
570TBS MAIN BLADES 570TBS
€75.00
TAIL BLADES 95TBS
95TBS TAIL BLADES 95TBS
€21.00
TAIL BLADES 105TBS
105TBS TAIL BLADES 105TBS
€27.00
Kraken Nitro Frame
H1250-S Kraken Nitro Frame
€54.00
MAIN BLADES 600 TBS
600TBS MAIN BLADES 600 TBS
€85.00
ALUMINUM SWASHPLATE
H1204-S ALUMINUM SWASHPLATE
€54.00
STEEL MAIN GEAR
H1208-S STEEL MAIN GEAR
€39.00
STEEL PINION
H1209-S STEEL PINION
€18.00
ORING DAMPERNER
H1216-S ORING DAMPERNER
€19.00
PLASTIC LANDING GEAR
H1226-S PLASTIC LANDING GEAR
€14.00
ALUMINUM LANDING SKID
H1242-S ALUMINUM LANDING SKID
€19.00
CARBON FIBER TAIL FIN
H1243-S CARBON FIBER TAIL FIN
€19.00
ALUMINUM BELL CRANK
H1248-S ALUMINUM BELL CRANK
€19.00
STEEL MAIN SHAFT
H1299-S STEEL MAIN SHAFT
€18.00
Engine Support Spacer
H1286-S Engine Support Spacer
€12.00
Plastic Fan Case
H1287-S Plastic Fan Case
€24.00
Engine Shaft
H1369-S Engine Shaft
€26.00
Frame Support Back
H1380-S Frame Support Back
€19.00
Aluminum Main Pulley 54T
H1379-S Aluminum Main Pulley 54T
€32.00
ALUMINUM SWASH LEVELER V2
H1385-S ALUMINUM SWASH LEVELER V2
€22.00
Goblin Kraken 580 Nitro Manual

Goblin Kraken 580 Nitro Manual
