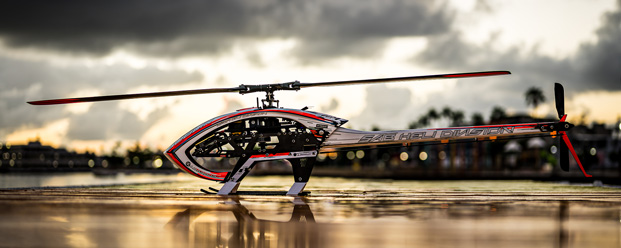

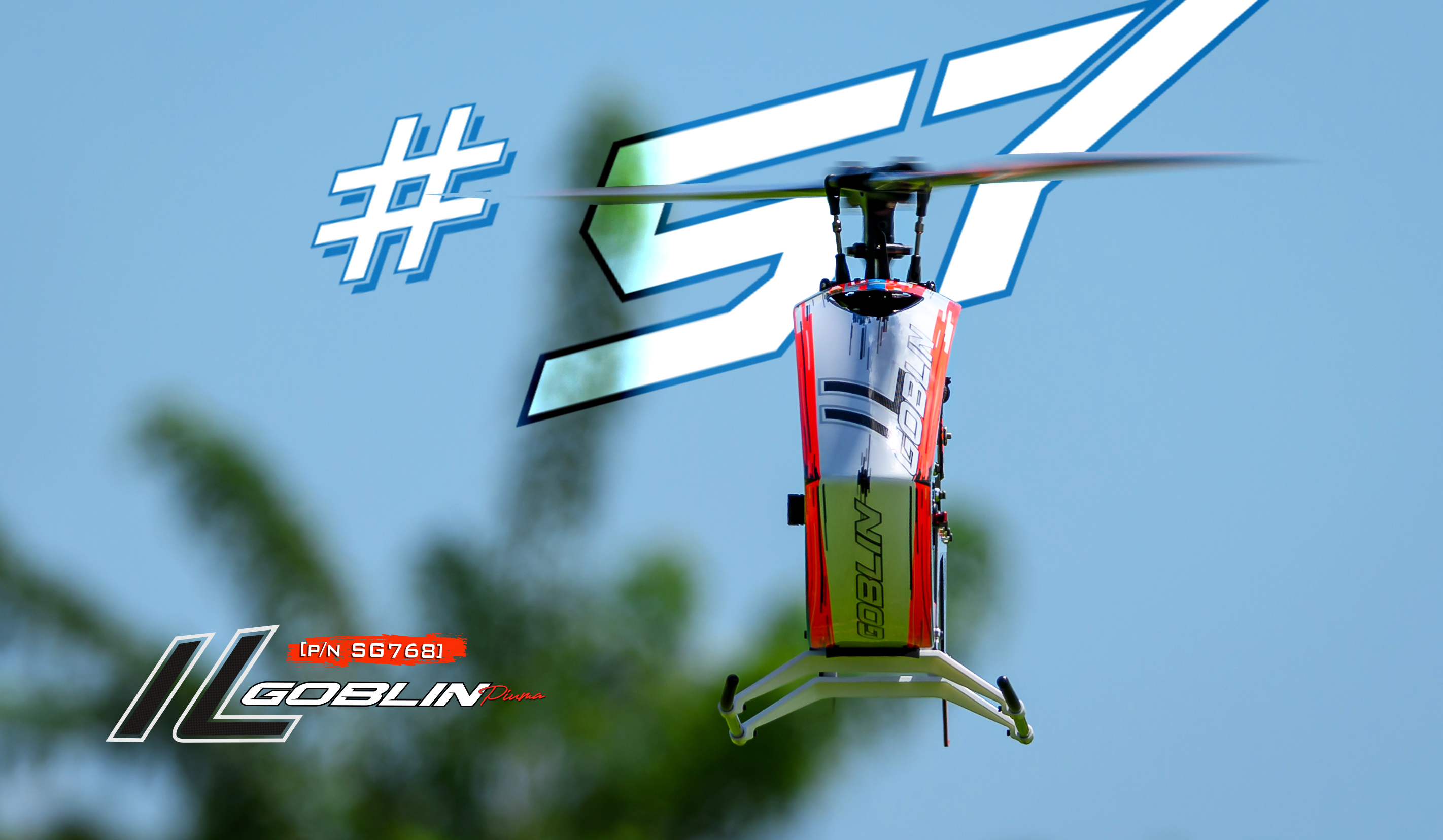

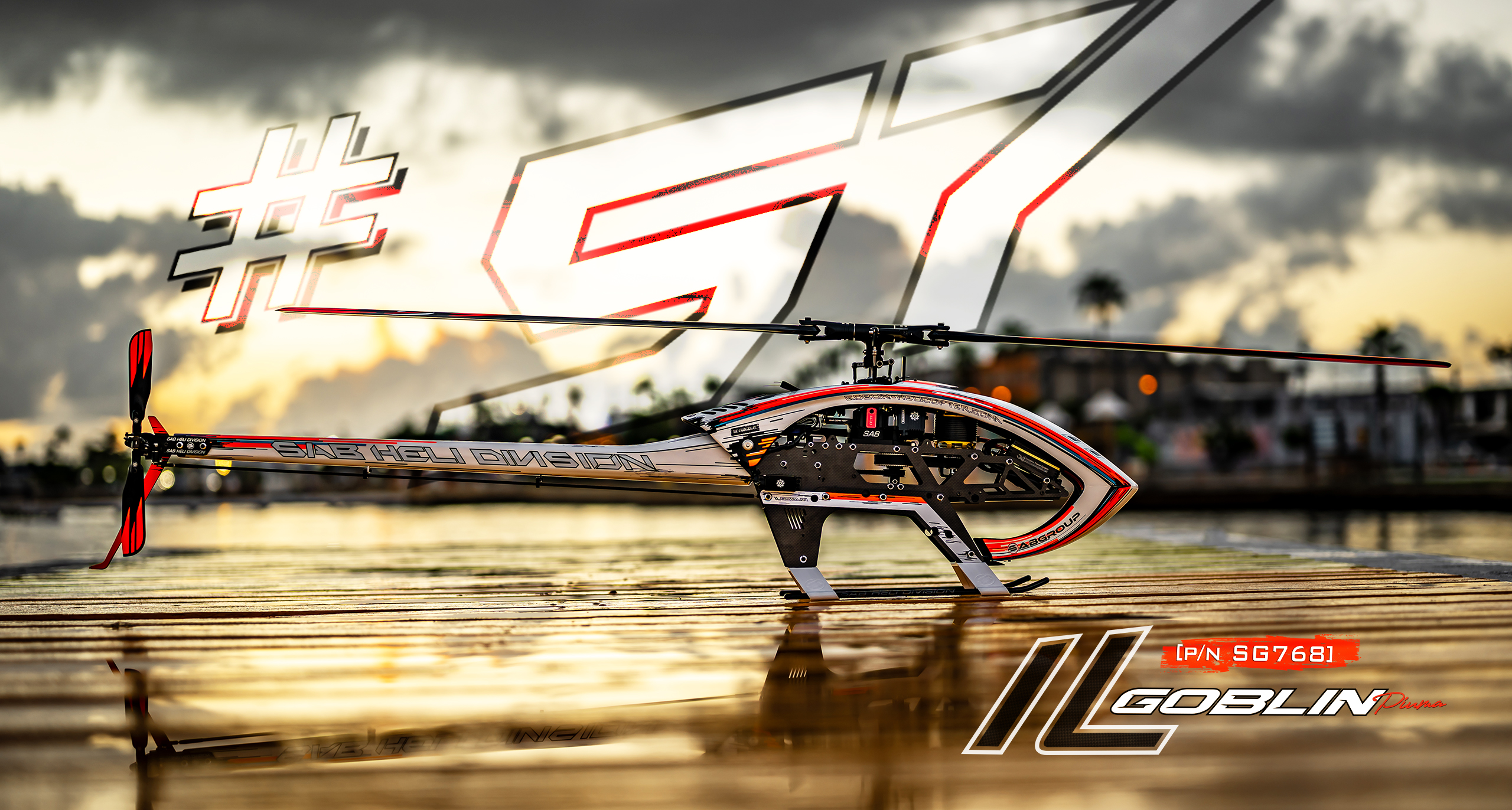

ILGoblin Piuma

The new ilGoblin PIUMA is the result of a carefully engineered design that ensures the stiffness and reliability typical of standard 700-class models, while maintaining a strong focus on lightness and structural simplicity.
Equipped with a 12 mm main shaft, a 10 mm spindle, and a main gear shared with the ilGoblin PRO, the PIUMA stands out as a model that is both solid and lightweight.
It is also the first Goblin ever specifically designed to offer an Electric-to-Nitro conversion kit: thanks to its smart and modular design, the PIUMA can be easily converted into a NITRO version by adding just a few dedicated components, giving pilots the freedom to experience both power options—electric and nitro—with minimal effort.
As always, the model features original and innovative graphic schemes and offers the option to install a standard aluminum tail boom, adding even more versatility to this new Goblin release.

Buy now

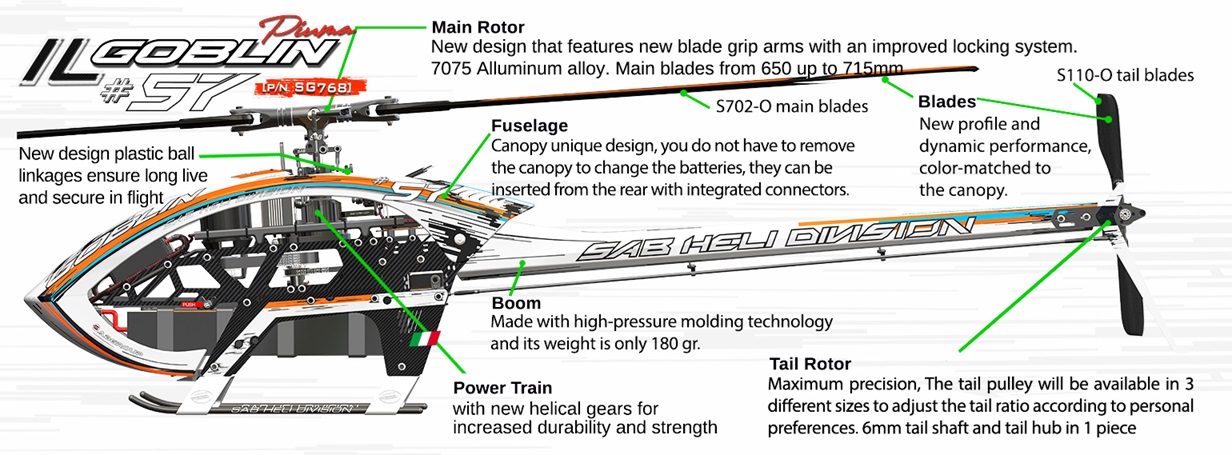

Main Rotor:

Blades grip size: same as ilGoblin PRO

Main shaft: 12 mm, Tail shaft: 6 mm, Spindle: 10 mm, spindle bearings 10x19x5 mm

Optional pivot shaft for the spindle allows fine-tuning of head rigidity and maximum movement

Tail Rotor:

Direct tail rotor transmission without idler pulley for maximum smoothness.

Shaft and hub machined from a single piece for maximum precision

Tail pulley available in three different sizes to adjust tail ratio based on personal preference

Tail Boom:

  • Constructed using high-pressure molding technology

  • Total weight: only 180 grams

  • Made of molded carbon for strength and lightness

Canopy & Blades:

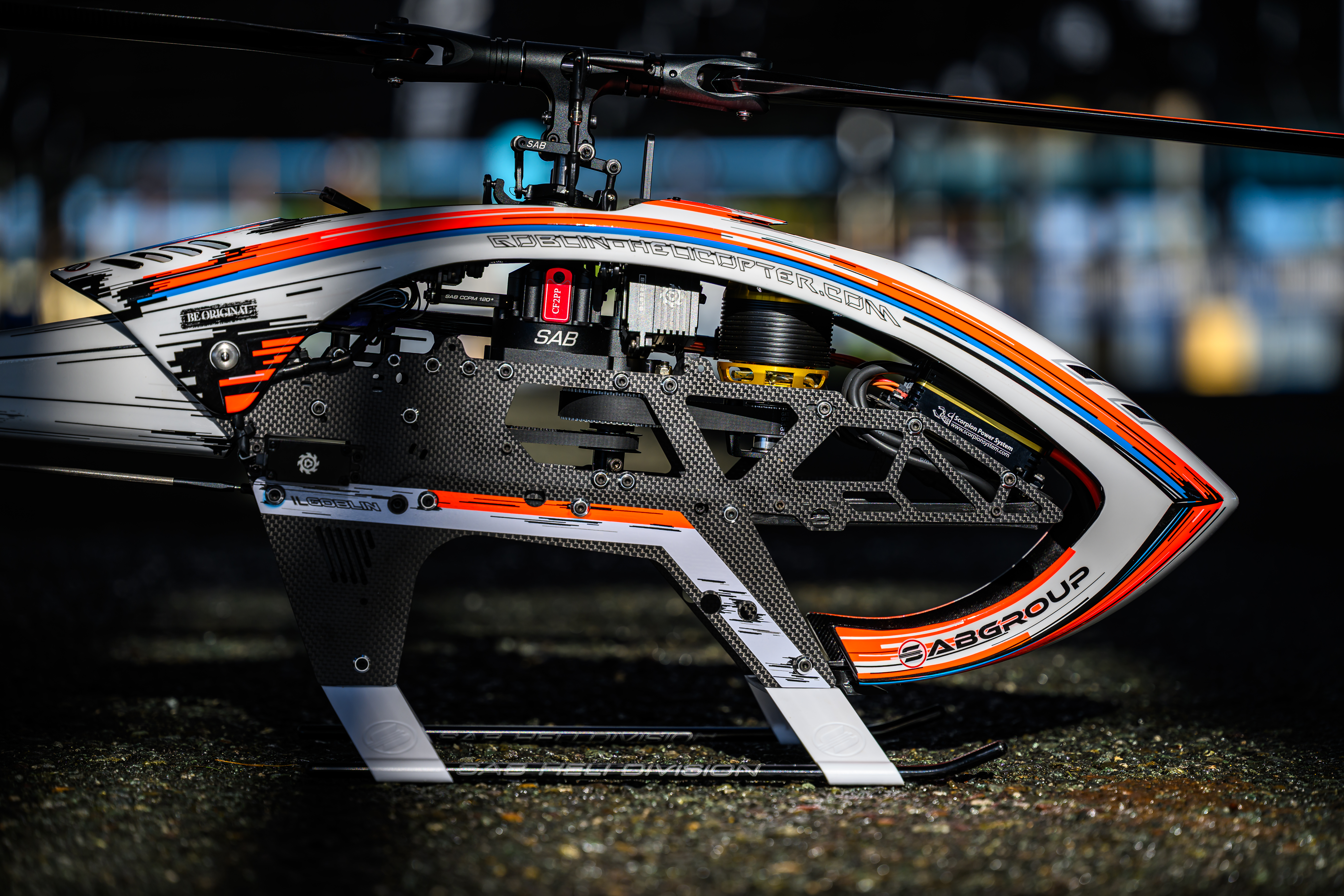

Unique canopy design allows battery insertion from the rear — no need to remove the canopy

Integrated connectors make battery changes fast and convenient

Airframe weight :

1995 g (without blades, motor, ESC, servos, FBL)
Main blades length :

650–715 mm
Tail blades length :

105–115 mm
Cyclic servos :

Standard size (40 mm)
Tail servo :

Standard size (40 mm)

Main rotor ratio :

11.8 to 8.8 : 1 (21T pulley included = 10.1 : 1)
Tail rotor ratio :

4.88-4.66 : 1 (23T pulley included = 4.66 : 1)
Power system :

Supports 6S–12S setups

Motor KV range :

950–1100 / 480–560 KV
Battery compartment :

50 x 60 x 300 mm

Buy now

ilGoblin RAW Style Canopy But More Dynamic

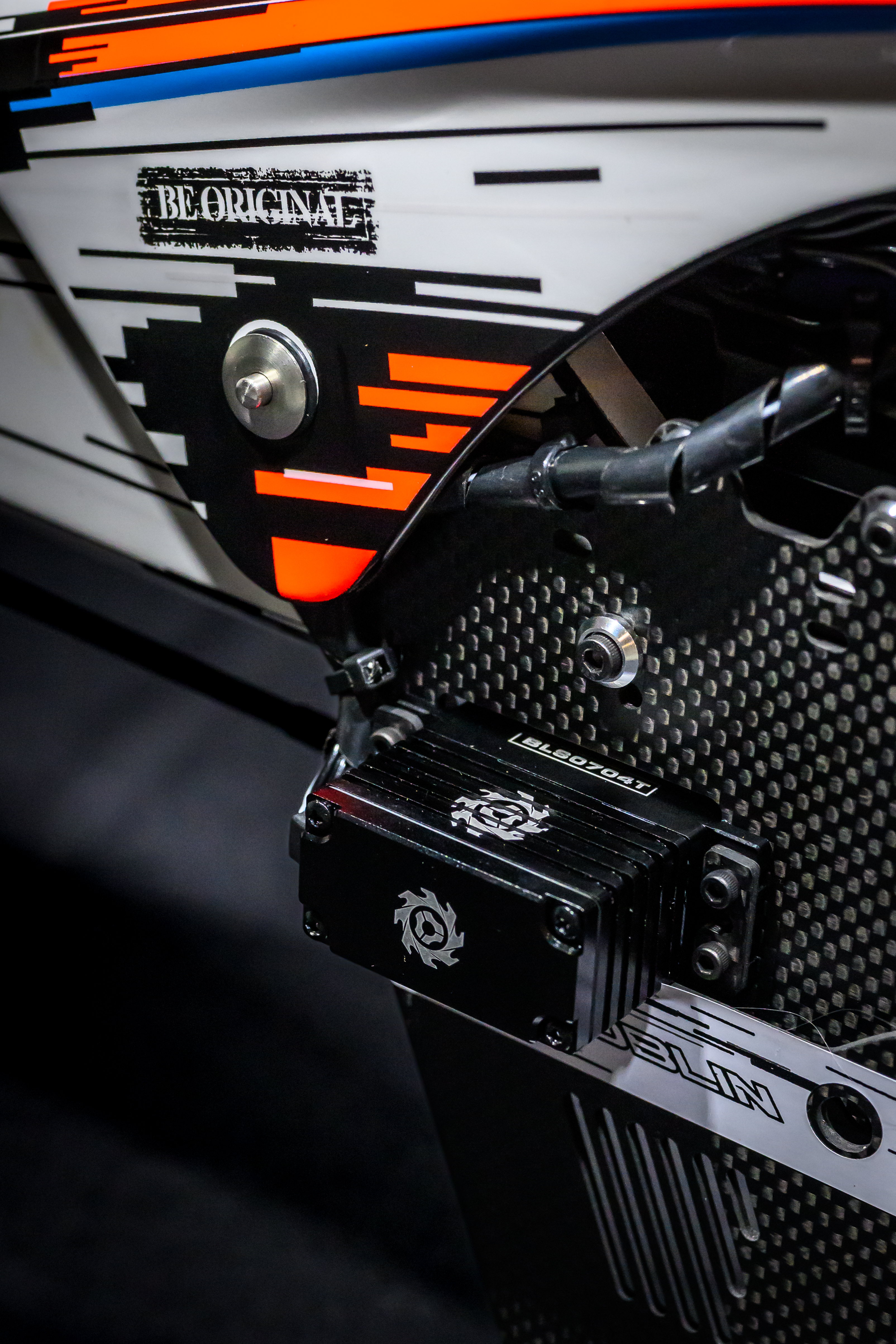

Tail Servo Located On Frame

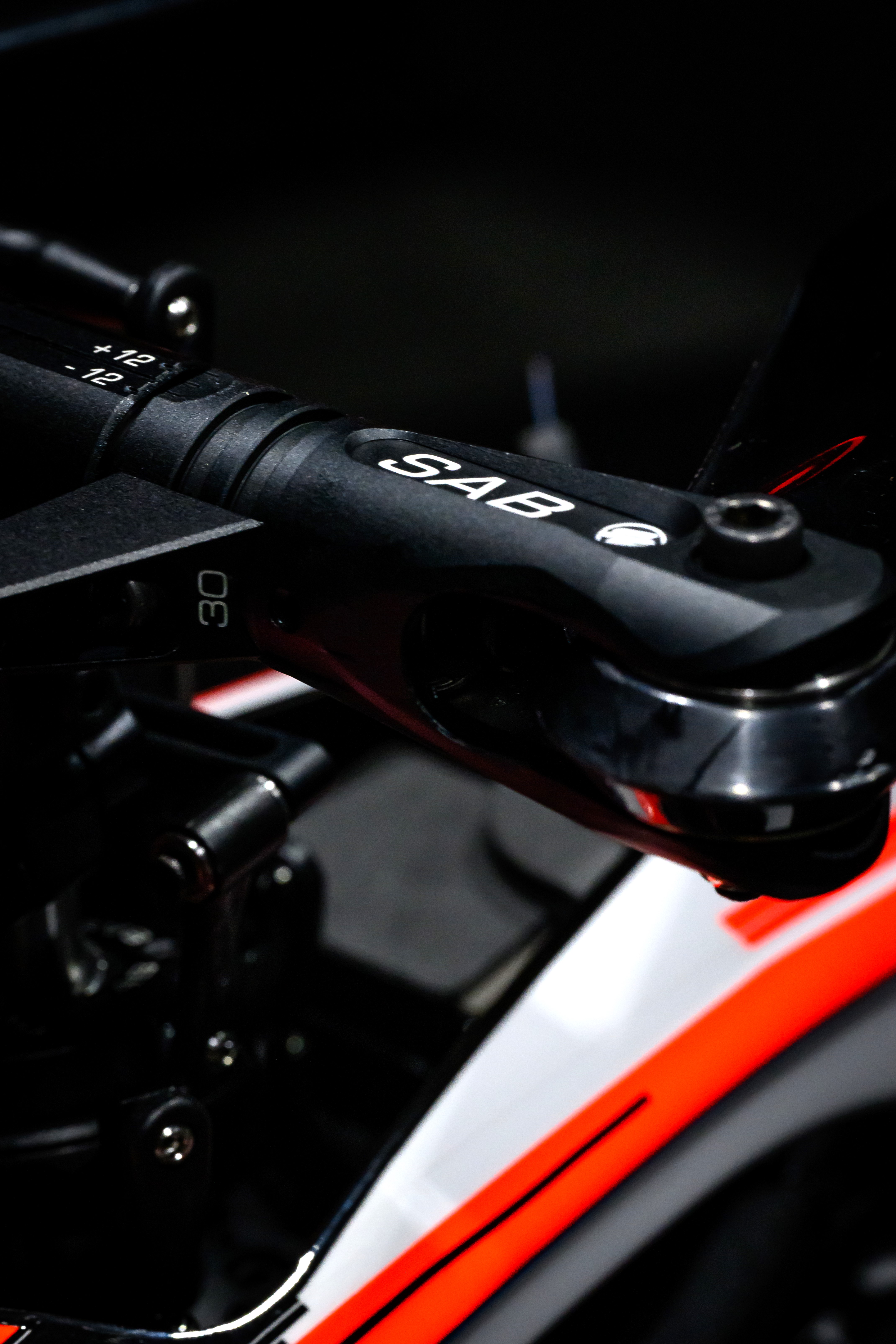

ilGoblin Pro 700 Aluminum Main Grip

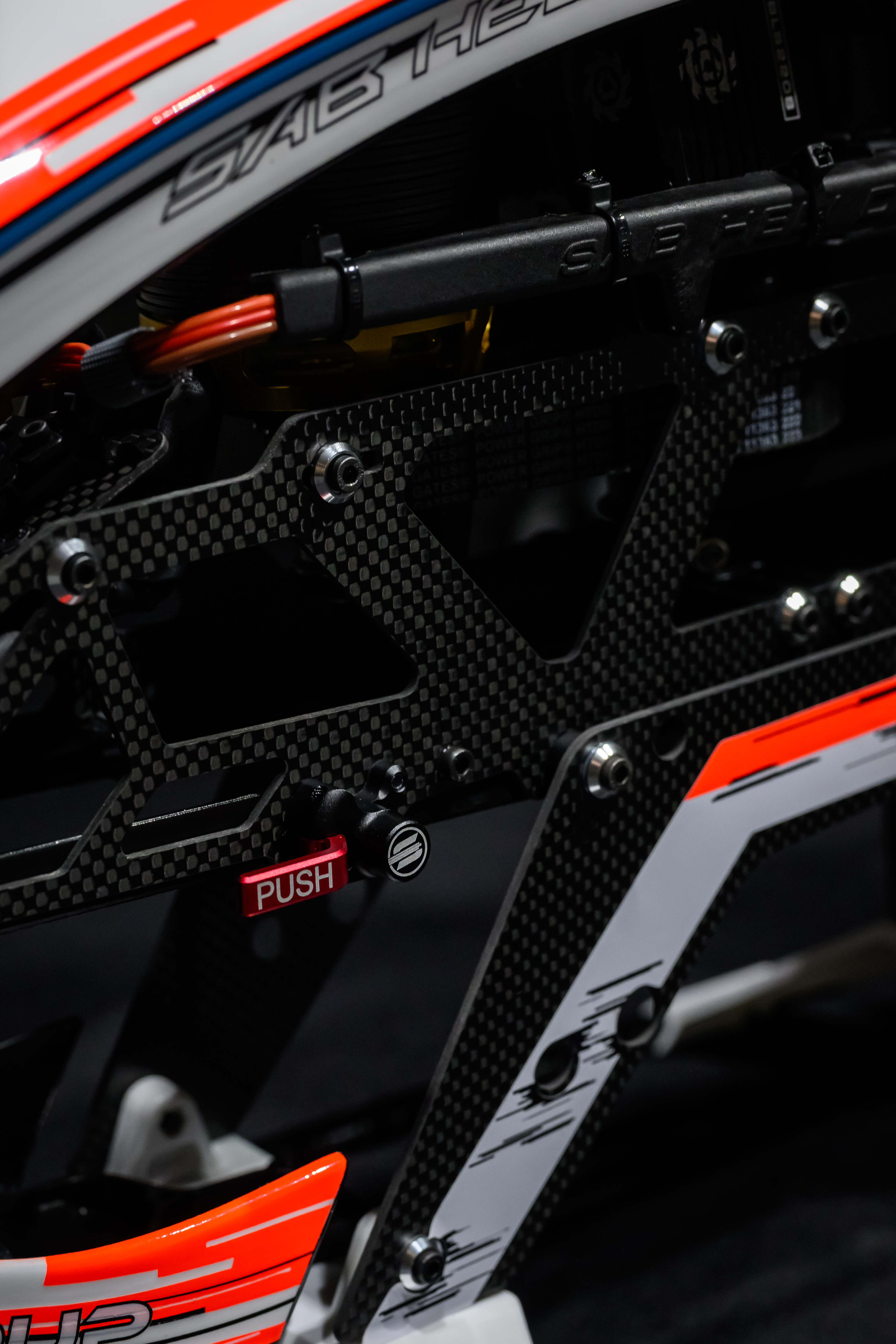

SAB Trusted Battery Block, Battery Rearward Insertion

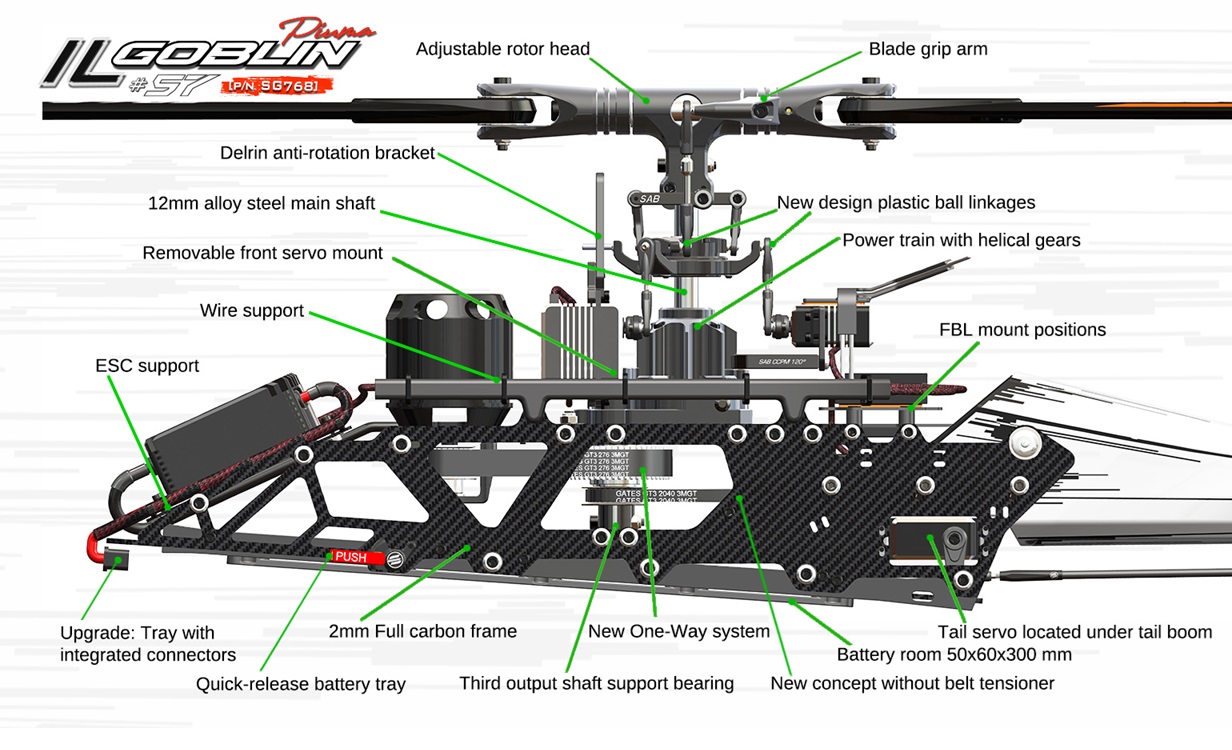

New Design Aluminum Gear Box, 12mm Main Shaft

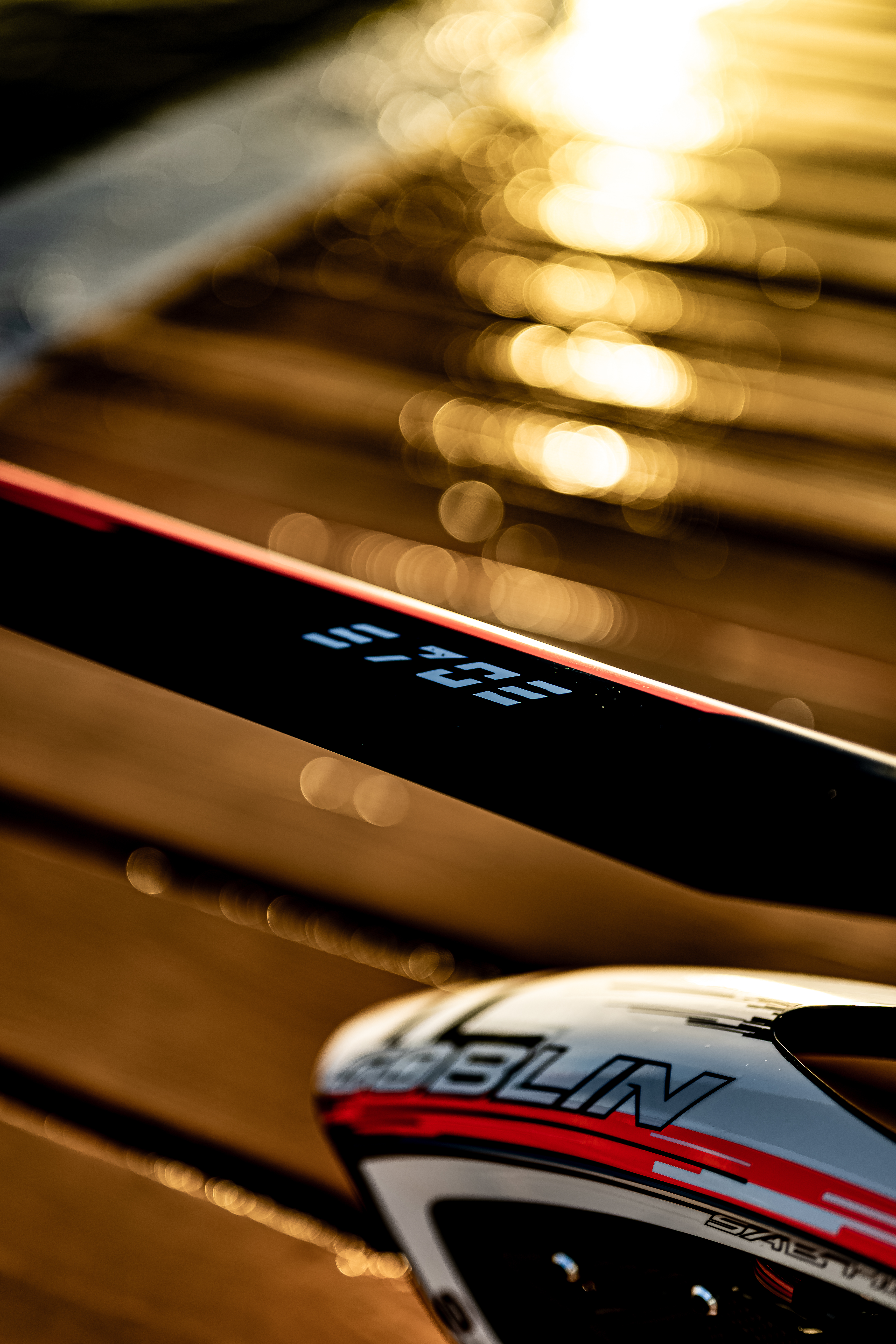

SAB S702 Main Blades Orange
